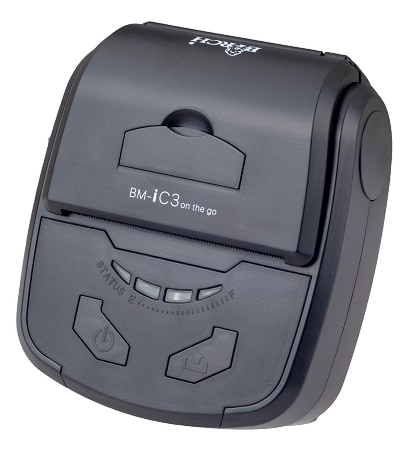

BM-iC3: 3 inch Bluetooth thermal receipt printer
Description
1. Mobile printer for IoT solutions
Our world is experiencing a digital transformation that is fundamentally reinventing the customer experience un-pending traditional business models and operations, and placing greater demands on “ mobile printing”. BM-iC3 printer is built-in advanced technology and with more compatibility for your applications.
2. Upgrade functions for mobility:
- 50mm diameter paper roll
- 70mm/second print speed
- Warning alarm for paper-lacking and power near off.
- Sleep and auto power off after 60 second of printer is no working.
- Support page mode and WiFi with AP and STA modes.
3: USB and Wireless connections:
BM-iC3 has the more optional interfaces to meet your applications— USB + Bluetooth, or USB + WiFi, or USB + WiFI + Bluetooth.
4: User-friendly, and Easy to use
BM-iC3 support easy paper loading and bundled with hand-carry bag as standards for your operations.
Specification
PRINTER METHOD
PRINTER SPEED
PAPER WIDTH
PAPER THICKNESS
CHARACTER PER LINE
CHARACTER SIZE
Font B:9×17 dots
Simplified Chinese / Traditional
Chinese: 24×24 dots
INTERFACE
BARCODE
1D Barcode: UPC-A/UPC-E/JAN13 (EAN13) / JAN8 (EAN8) / CODABAR/ITF/CODE39/CODE93/CODE128
2D Barcode: QR CODE/PDF417
EXTENDED CHARACTERS
Katakana、PC850(Multilingual)、
PC860(Portuguese)、PC863
(Canadian-French)、PC865
(Nordic)、West Europe、Greek、
Hebrew、East Europe、Iran、
WPC1252、PC866(Cyrillic#2)、
PC852(Latin2)、PC858、IranII、
Latvian、Arabic、PT151(1251)
NV FLASH
INPUT BUFFER
32k bytes
POWER SUPPLY
Input:AC 110V/220V, 50~60Hz
POWER
EAN 13: 0mm-45mm(13mil), Code 128: 50mm-100mm (4.7mil 10 digits) QR Code: 25mm-240mm (20mil 16 digits), PDF 417: 30mm-140mm (6.67mil 7 digits)l
BATTERY
2000mAh
RELIABILITY
Printing head life: 50 km
WORKING ENVIRONMENT
Temperature(0~45°C)
Humidity(10~80%)
STORAGE ENVIRONMENT
Temperature(-10~60°C)
Humidity(10~90%)
OPERATING SYSTEM
Windows/Linux/IOS/Android
GROSS WEIGHT
0.325 kg
DIMENSION
136x116x60mm (LxWxH)
